Product Presentation #
The STEM Education series has 3 themes, 6 academic years of advanced teaching system, designed to give students continuity and direction of learning.
The product is combined with the wood board, 3-5 big works per semester, and the works can be presented in the map scene.
Product Presentation #

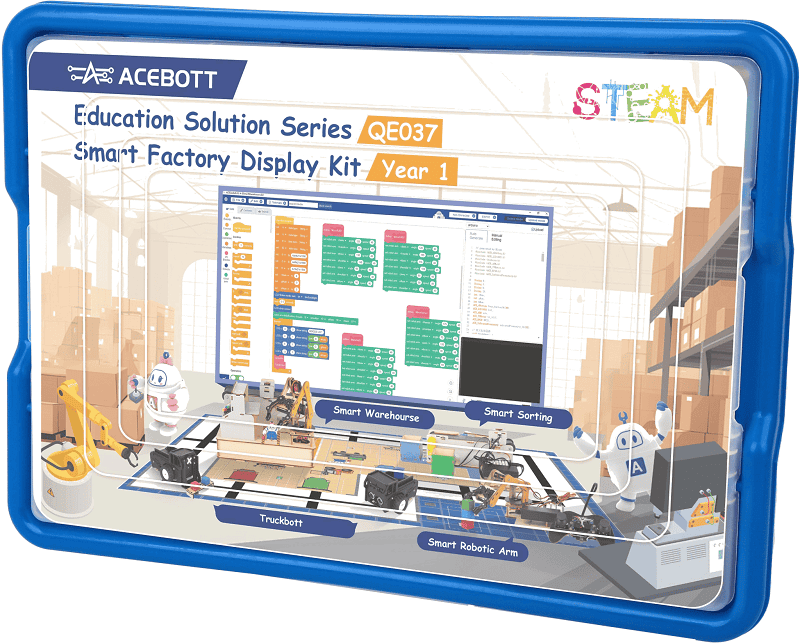

The Smart Factory display kit is the 3rd theme in the series of educational solutions. It supports both semesters of study in the first academic year.
Different from QE031 and QE032, it can build 4 items on the map at the same time to show learning results, and it is equipped with a display map.
Product Presentation #
The QE037 display kit encompasses all the contents of the smart factory LEVEL 1 and LEVEL 2, and can simultaneously assemble four projects including the Smart Robotic Arm, Smart Sorting, Smart Warehousing System, and AGV, while enabling collaborative work between each project to simulate the workflow of an smart factory system.
Product Presentation #
The Smart Factory Level 1 integrates multiple practical projects such as smart robotic arms, intelligent production lines, and smart warehouses, helps students master programming knowledge and electronic component knowledge in practical operation, and cultivates their STEAM ability and innovative thinking.
Controller Board Introduction #
ESP32 Max V3.0 #
ESP32-Shield V1.0 #
Product Presentation #
Through the Smart Factory Level 2 (TruckBott Smart Car), students can experience the functions of an smart factory AGV car, such as forklift handling, dump truck handling, encoded motor control, line following, obstacle avoidance, infrared remote control, and more. Additionally, they can control the car using customized voice commands.
Product Presentation #
TruckBott smart car features a modular design, making it easy to assemble and ideal for teaching demonstrations.
The Value of Kit #
- Structural Construction
- Programming Learning
- Interdisciplinary Knowledge
- Bluetooth/WiFi Communication
- APP Development
- Smart Factory Theme
- Suitable for Classroom/School Teaching
Product Features #
Multi-platform Support #
Arduino IDE #

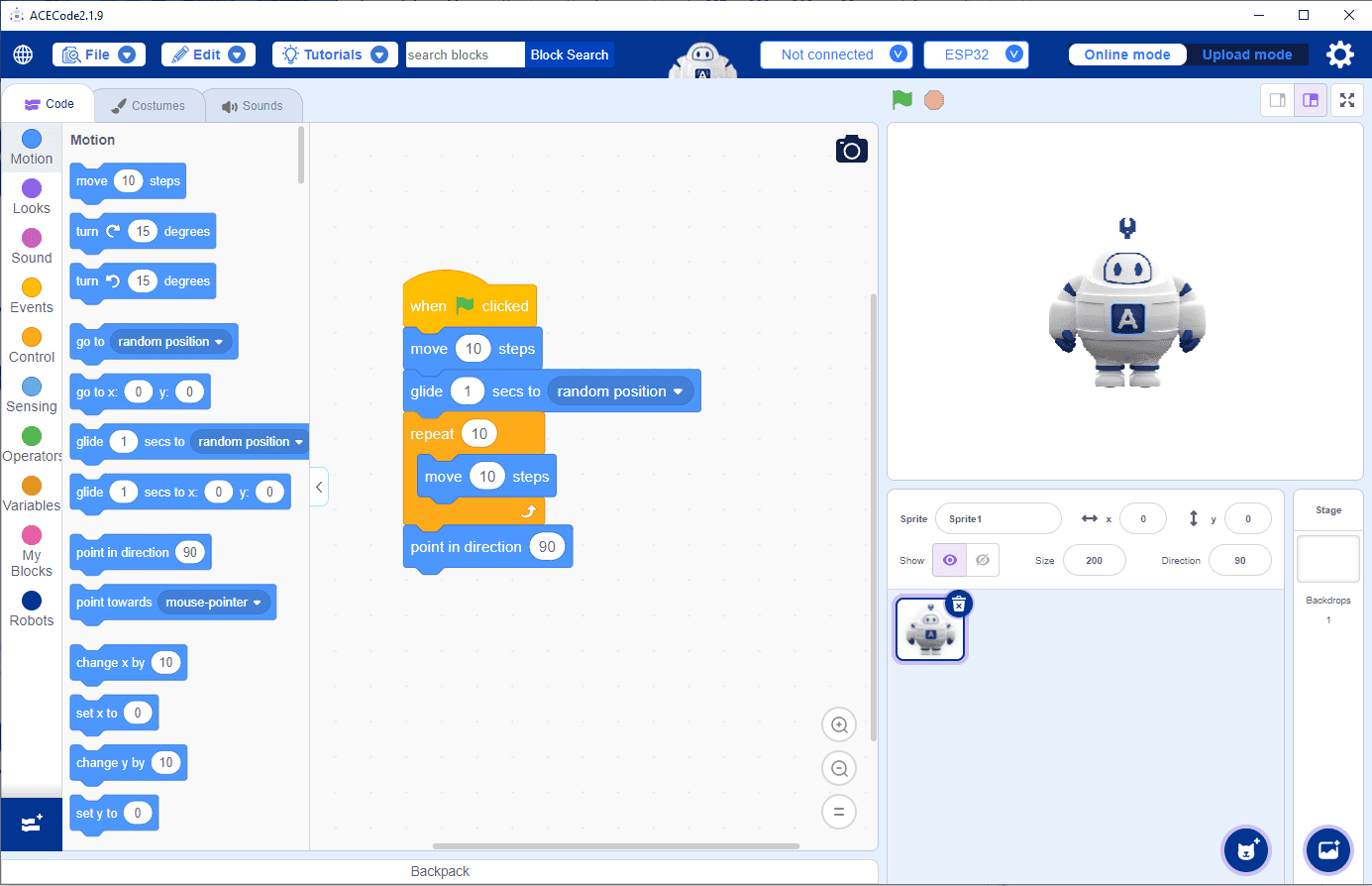

ACECode #
APP #
Course OUTLINES #

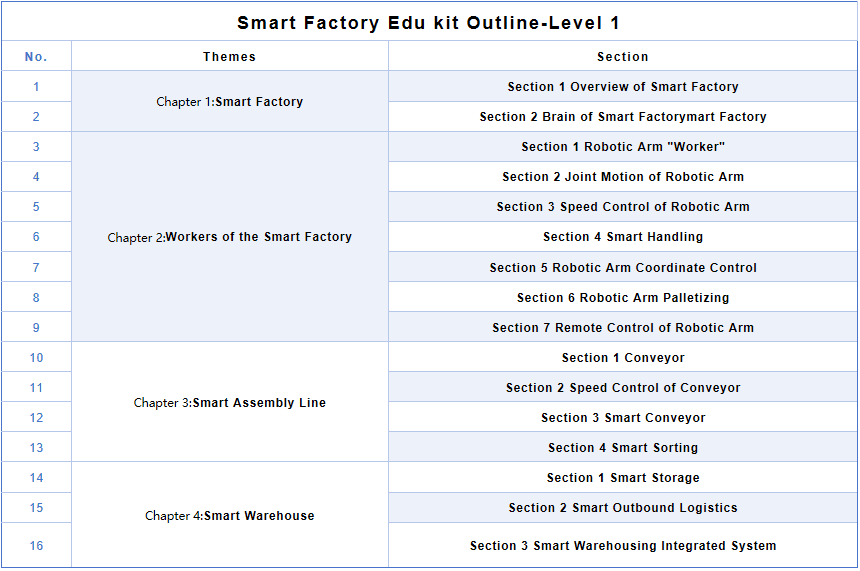

| Smart Factory Edu kit Outline-Level 1 | ||
| No. | Themes | Section |
| 1 | Chapter 1:Smart Factory | Section 1 Overview of Smart Factory |
| 2 | Section 2 Brain of Smart Factorymart Factory | |
| 3 | Chapter 2:Workers of the Smart Factory | Section 1 Robotic Arm “Worker” |
| 4 | Section 2 Joint Motion of Robotic Arm | |
| 5 | Section 3 Speed Control of Robotic Arm | |
| 6 | Section 4 Smart Handling | |
| 7 | Section 5 Robotic Arm Coordinate Control | |
| 8 | Section 6 Robotic Arm Palletizing | |
| 9 | Section 7 Remote Control of Robotic Arm | |
| 10 | Chapter 3:Smart Assembly Line | Section 1 Conveyor |
| 11 | Section 2 Speed Control of Conveyor | |
| 12 | Section 3 Smart Conveyor | |
| 13 | Section 4 Smart Sorting | |
| 14 | Chapter 4:Smart Warehouse | Section 1 Smart Storage |
| 15 | Section 2 Smart Outbound Logistics | |
| 16 | Section 3 Smart Warehousing Integrated System | |
Course OUTLINES #

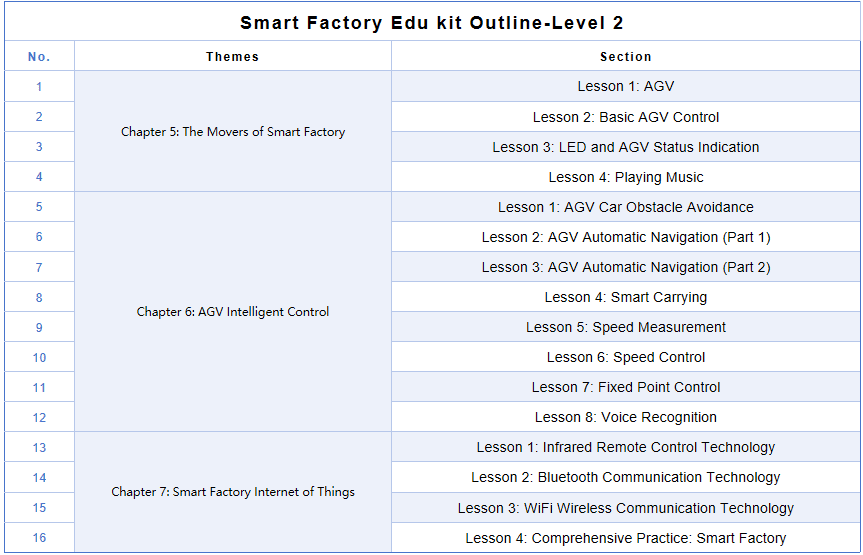

| Smart Factory Edu kit Outline-Level 2 | ||
| No. | Themes | Section |
| 1 | Chapter 5: The Movers of Smart Factory | Lesson 1: AGV |
| Lesson 2: Basic AGV Control | ||
| Lesson 3: LED and AGV Status Indication | ||
| 2 | Lesson 4: Playing Music | |
| 3 | Chapter 6: AGV Intelligent Control | Lesson 1: AGV Car Obstacle Avoidance |
| 4 | Lesson 2: AGV Automatic Navigation (Part 1) | |
| 5 | Lesson 3: AGV Automatic Navigation (Part 2) | |
| 6 | Lesson 4: Smart Carrying | |
| 7 | Lesson 5: Speed Measurement | |
| 8 | Lesson 6: Speed Control | |
| Lesson 7: Fixed Point Control | ||
| 9 | Lesson 8: Voice Recognition | |
| 10 | Chapter 7: Smart Factory Internet of Things | Lesson 1: Infrared Remote Control Technology |
| 11 | Lesson 2: Bluetooth Communication Technology | |
| 12 | Lesson 3: WiFi Wireless Communication Technology | |
| 13 | Lesson 4: Comprehensive Practice: Smart Factory | |
Course Description #
Detailed Tutorial & Textbook
Course Description #
Teaching Slides
Part List #
