Product Presentation #

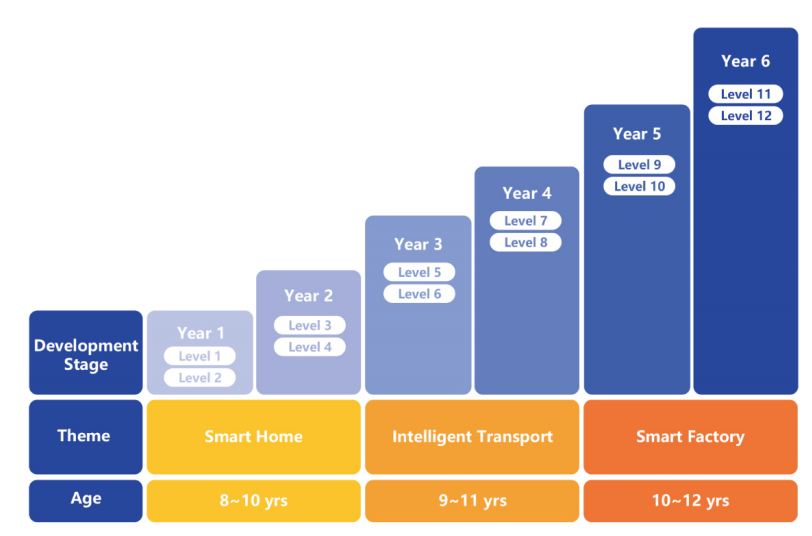

The STEM Education series has 3 themes, 6 academic years of advanced teaching system, designed to give students continuity and direction of learning.
The product is combined with the wood board, 3-5 big works per semester, and the works can be presented in the map scene.
Product Presentation #
Smart Factory Education Kit is the 3rd topic in the Education Solutions Series.
It has 2 academic years and 4 semesters of teaching package.
It is a STEM education kit designed for students aged 10 years and above.
Product Presentation #
The Smart Factory integrates multiple practical projects such as smart robotic arms, intelligent production lines, and smart warehouses, helps students master programming knowledge and electronic component knowledge in practical operation, and cultivates their STEAM ability and innovative thinking.
Product Presentation #

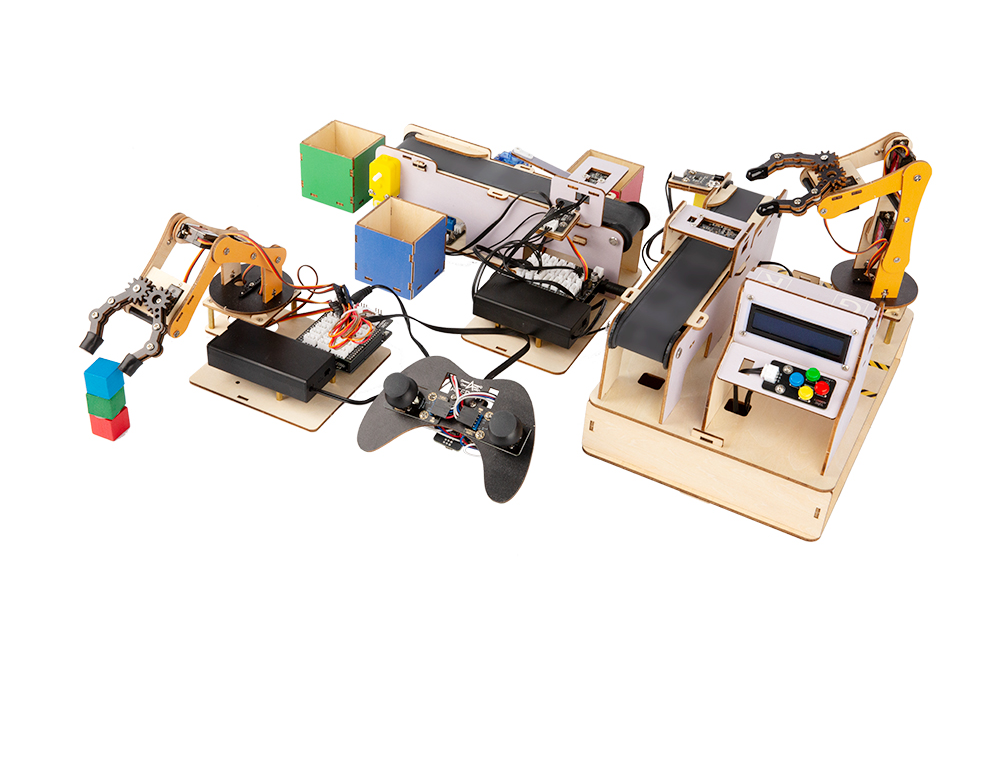

It is an 3-in-1 kit, each kit can make 10+ small projects, and has 3 comprehensive display projects.
Note: Each kit only has one controller board, so only one of these projects exists at a time.
Product Presentation #

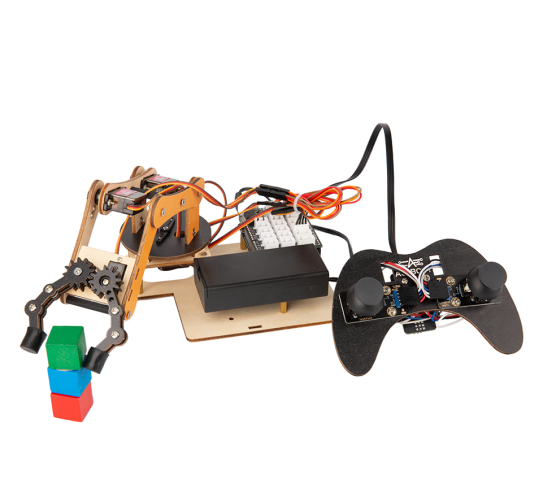

Through the smart robotic arm project, students can learn about the structural design, working principles, and control methods of robotic arms. They will understand the applications of robotic arms in smart factories and will program the robotic arm to automatically transport goods or control it via a joystick to move items.
Product Presentation #

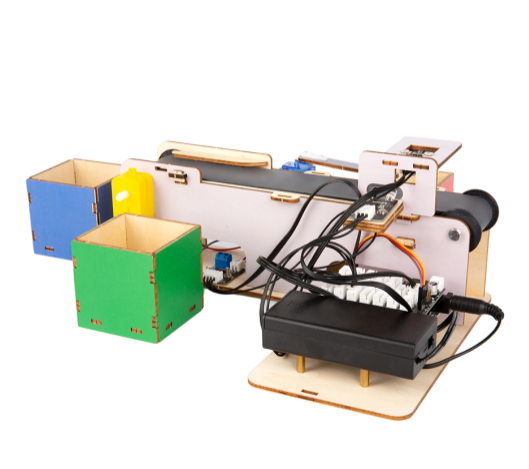

Through the smart sorting project on the production line, students can understand the working principles of conveyor systems in smart factories. They will learn how to build a conveyor belt and program a simulation of product sorting scenarios on the production line.
Product Presentation #
Through the smart warehouse project, students can learn about the processes and working principles of inbound and outbound logistics, as well as inventory management in smart factories. They will automatically manage inventory by recognizing electronic tags on items and display real-time inventory data on an LCD screen. Additionally, they will simulate customer orders using buttons to achieve intelligent outbound logistics.
The Value of Kit #
- Structural Construction
- Programming Learning
- Interdisciplinary Knowledge
- Bluetooth/WiFi Communication
- APP Development
- Smart Factory Theme
- Suitable for Classroom/School Teaching

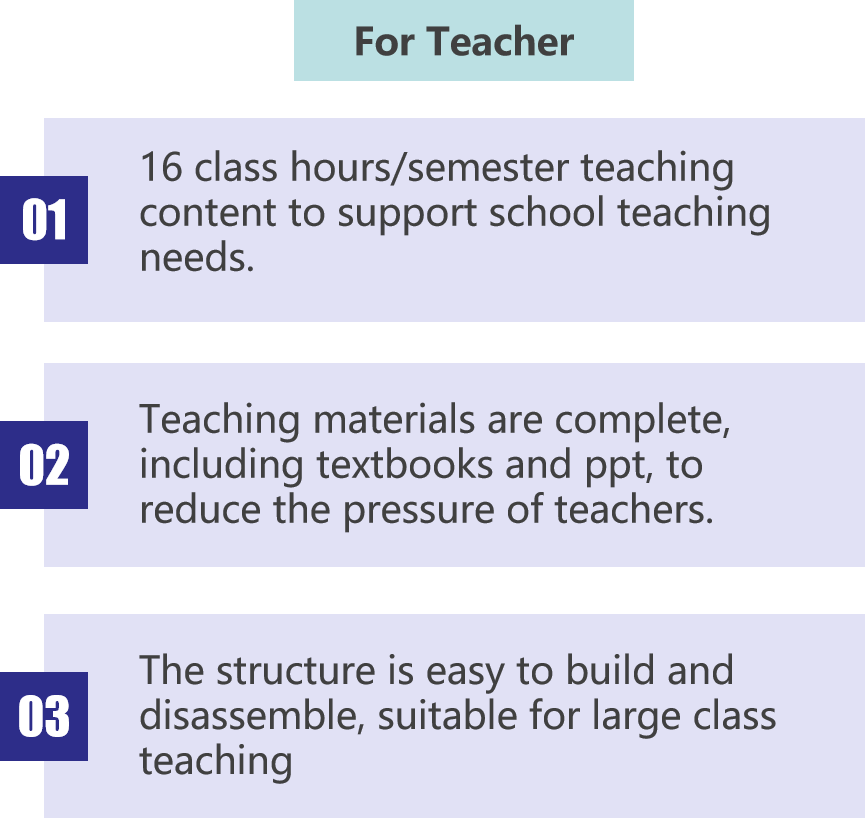

Product Features #

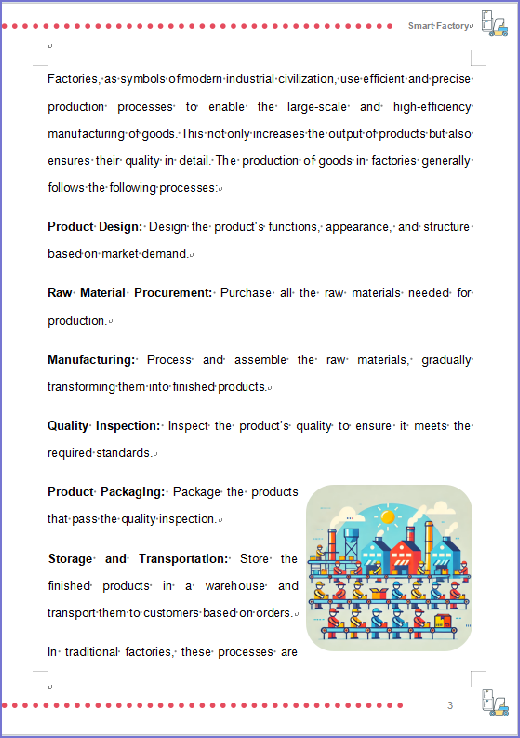

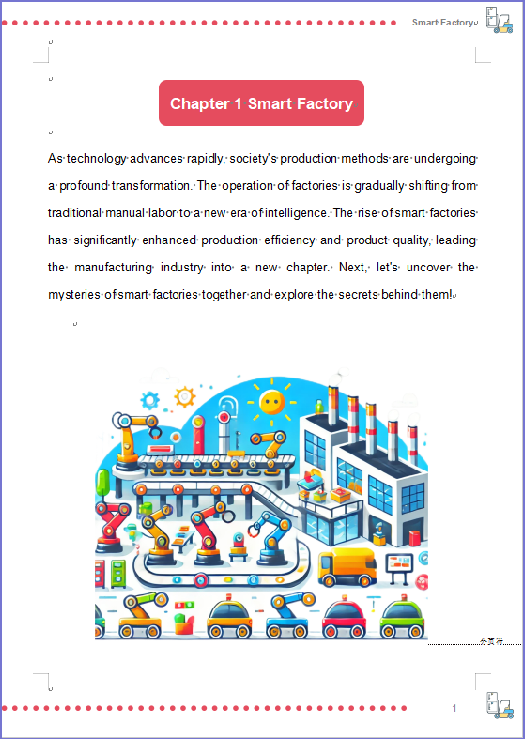

Course Description #

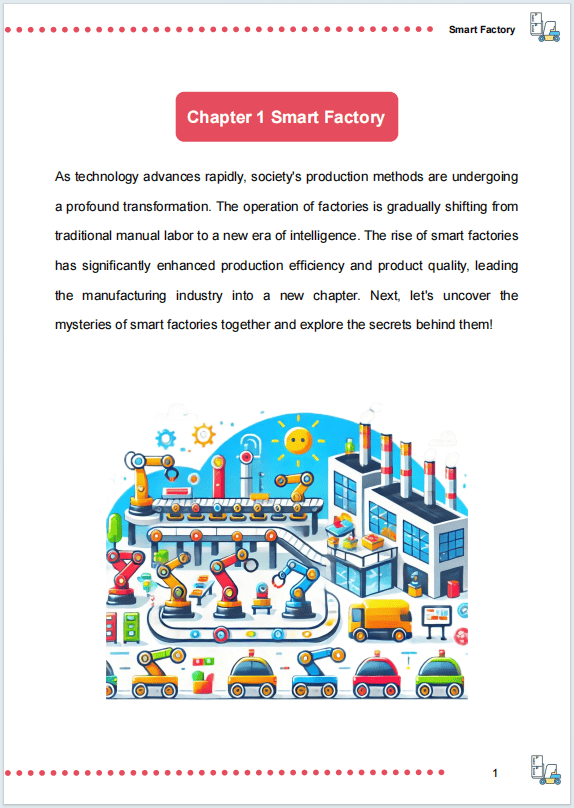

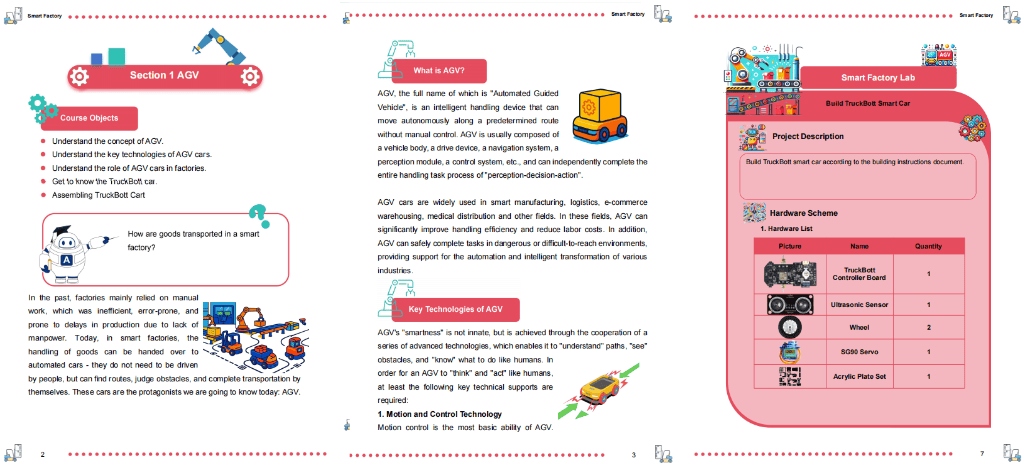

Detailed Tutorial & Textbook

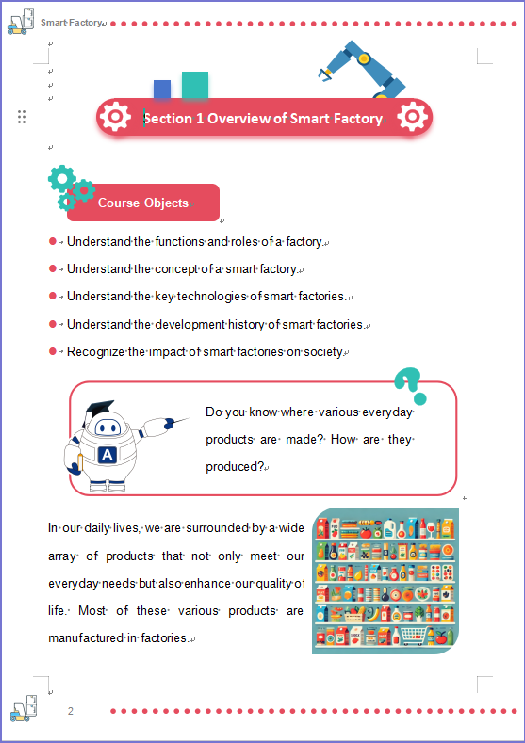

Course Description #

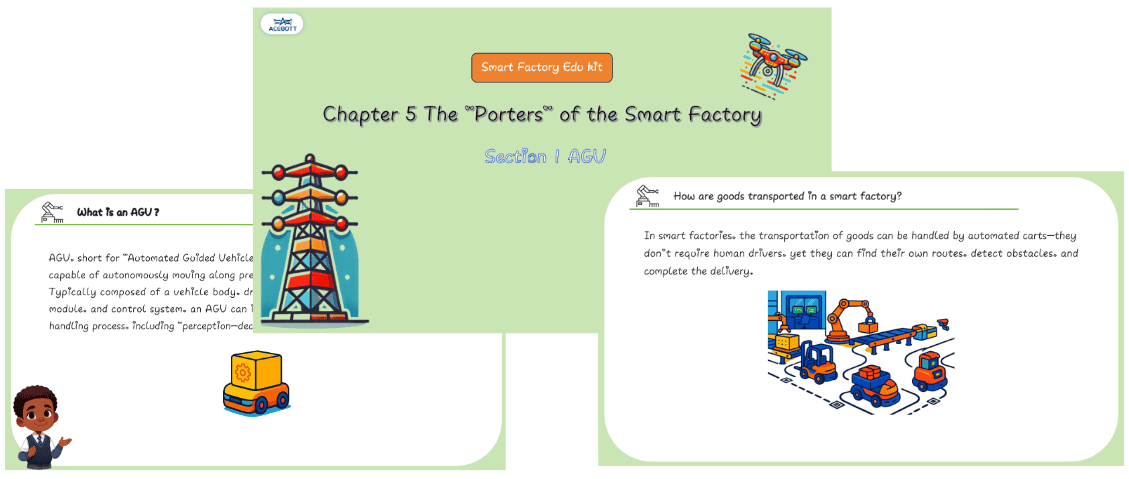

Teaching Slides #
Course OUTLINES #
| Smart Factory Edu kit Outline-Level 1 | ||
| No. | Themes | Section |
| 1 | Smart Factory | Section 1 Overview of Smart Factory |
| 2 | Section 2 Brain of Smart Factorymart Factory | |
| 3 | Workers of the Smart Factory | Section 1 Robotic Arm “Worker” |
| 4 | Section 2 Joint Motion of Robotic Arm | |
| 5 | Section 3 Speed Control of Robotic Arm | |
| 6 | Section 4 Smart Handling | |
| 7 | Section 5 Robotic Arm Coordinate Control | |
| 8 | Section 6 Robotic Arm Palletizing | |
| 9 | Section 7 Remote Control of Robotic Arm | |
| 10 | Smart Assembly Line | Section 1 Conveyor |
| 11 | Section 2 Speed Control of Conveyor | |
| 12 | Section 3 Smart Conveyor | |
| 13 | Section 4 Smart Sorting | |
| 14 | Smart Warehouse | Section 1 Smart Storage |
| 15 | Section 2 Smart Outbound Logistics | |
| 16 | Section 3 Smart Warehousing Integrated System | |
Course Description #
Comprehensive and Interdisciplinary Content: Covers the five fields of Science, Technology, Engineering, Arts, and Mathematics (STEAM). The content is interconnected and integrated, helping students build a comprehensive knowledge system.
Practicality: The content is closely related to real-world smart factory scenarios, enabling students to understand the practical application of knowledge and develop the ability to solve real-world problems.
Flexible Teaching Methods: Driven by problem-based learning (PBL), encouraging students to learn through problem-solving.
Rich in Practice: Includes multiple hands-on projects for practical experience.
Controller Board Introduction #
ESP32 Max V3.0 #

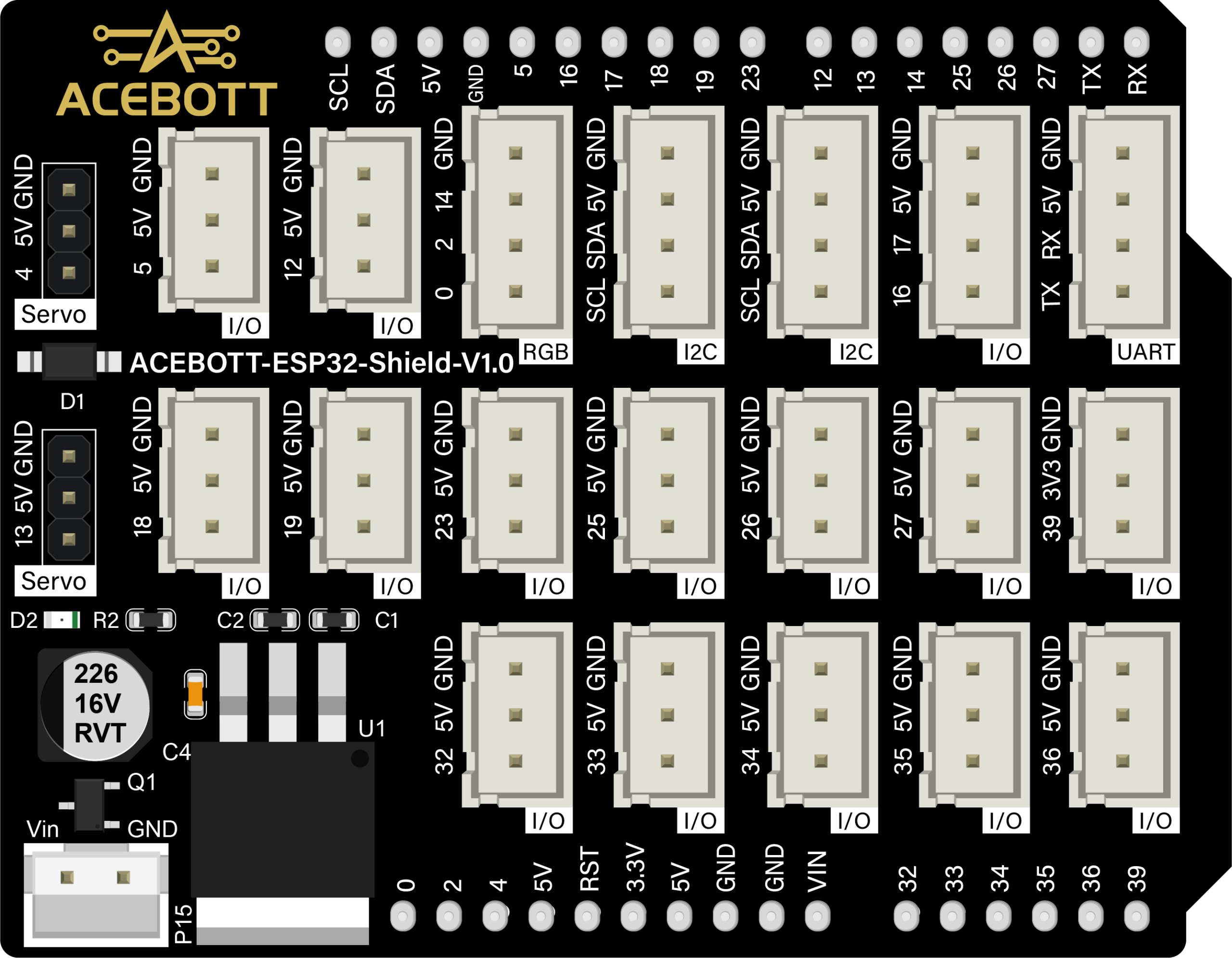

ESP32-Shield V1.0 #
Multi-platform Support #

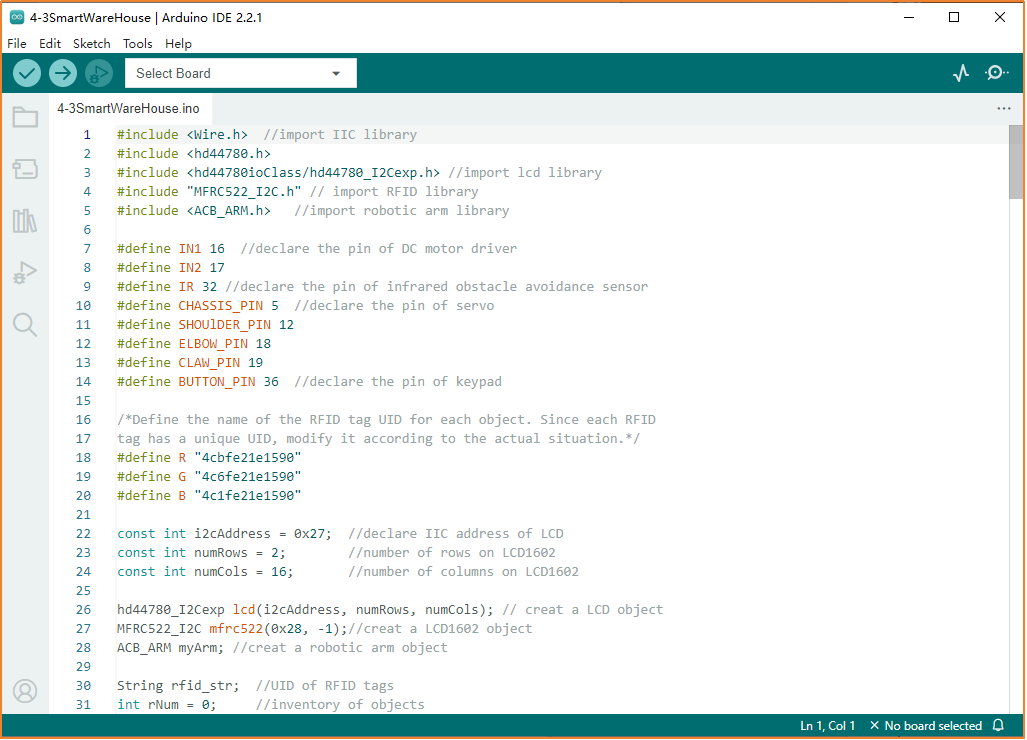

Arduino IDE #

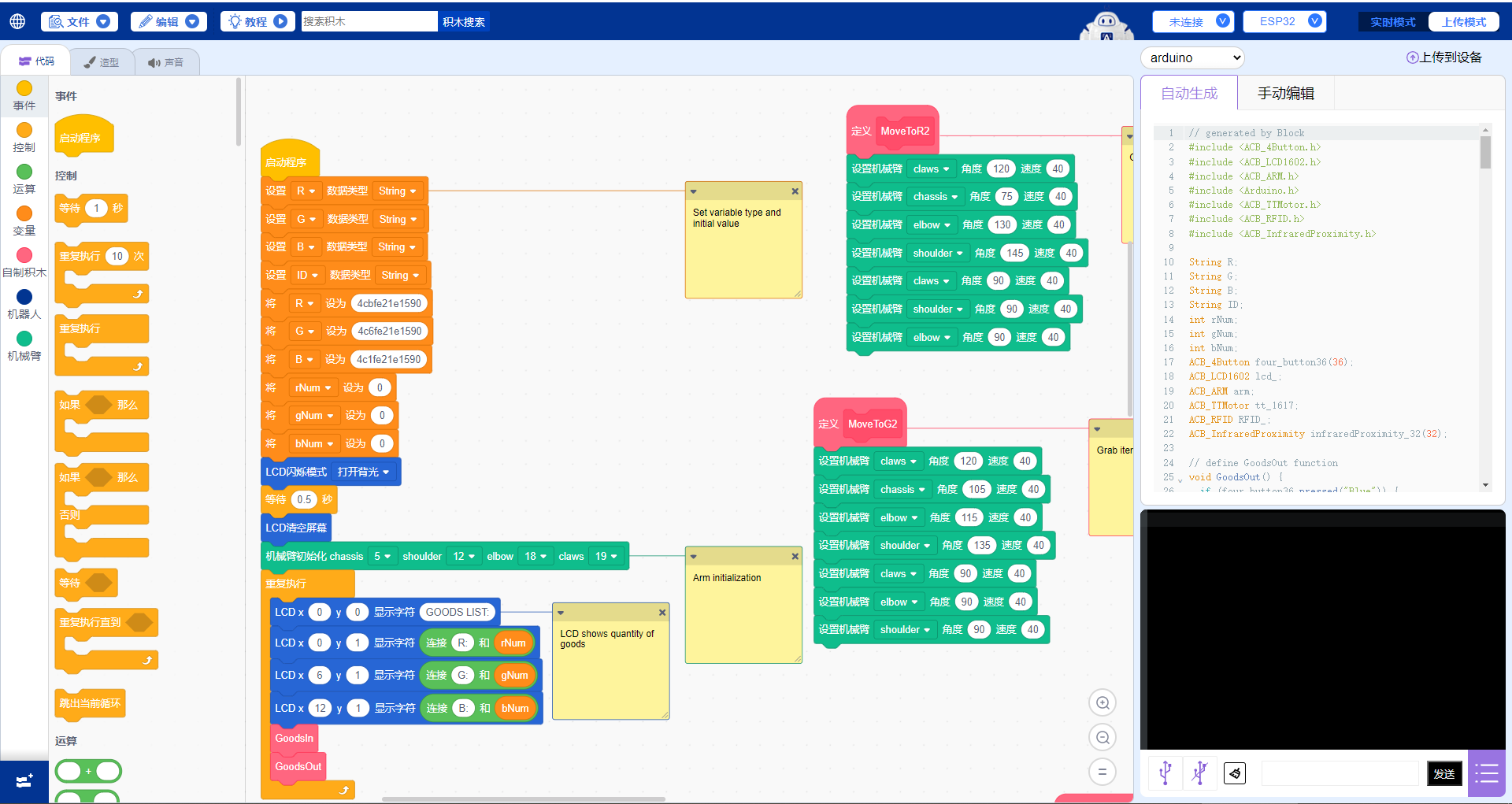

ACECode #
